ENGINEERED FOR LIVE EVENTS

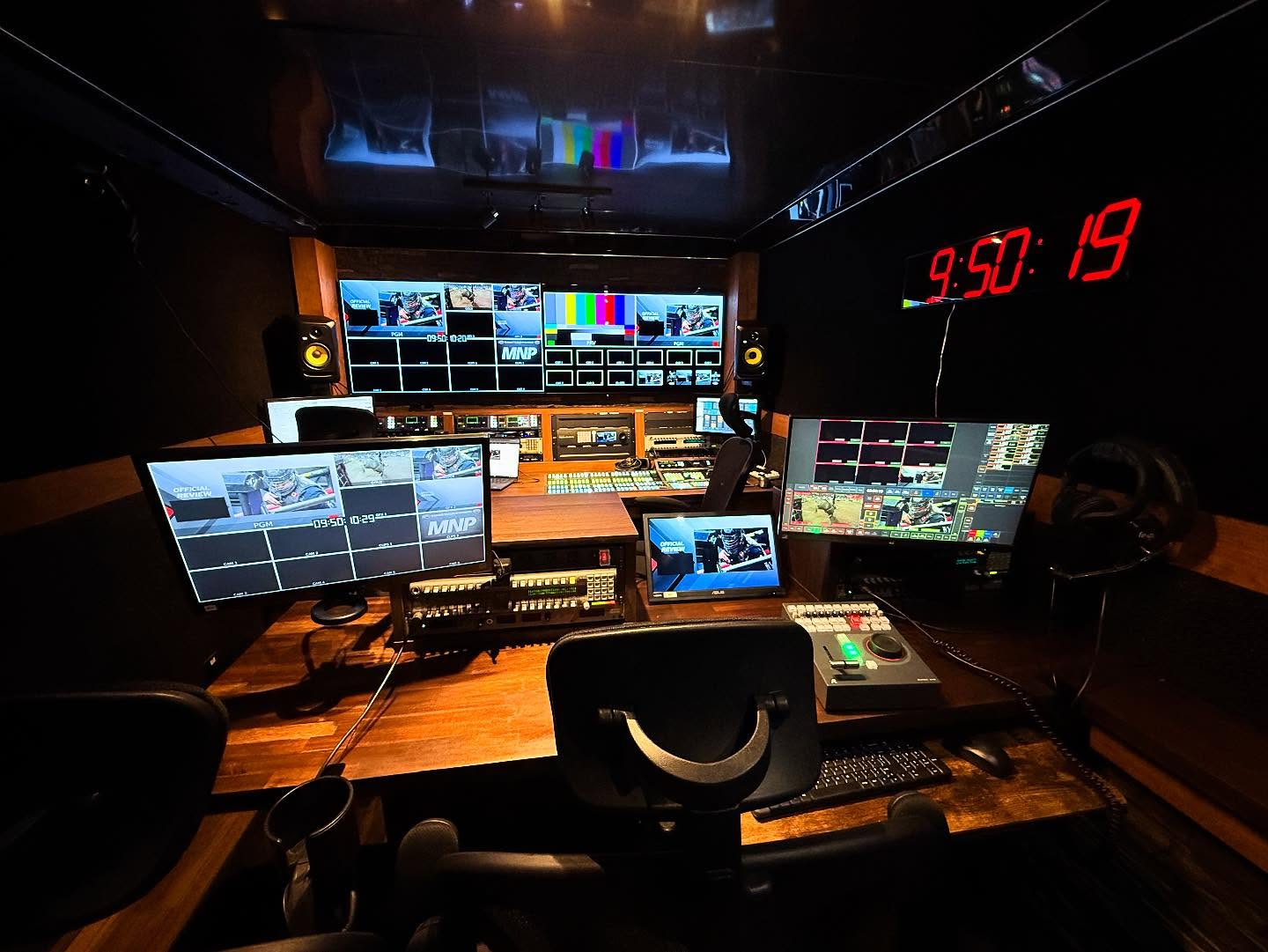

ECLIPSE HD 36 PRODUCTION TRUCK
Switcher
Ross Carbonite Black PLUS (36 inputs / 25 outputs, frame sync on all inputs, 5 multi-view outputs)

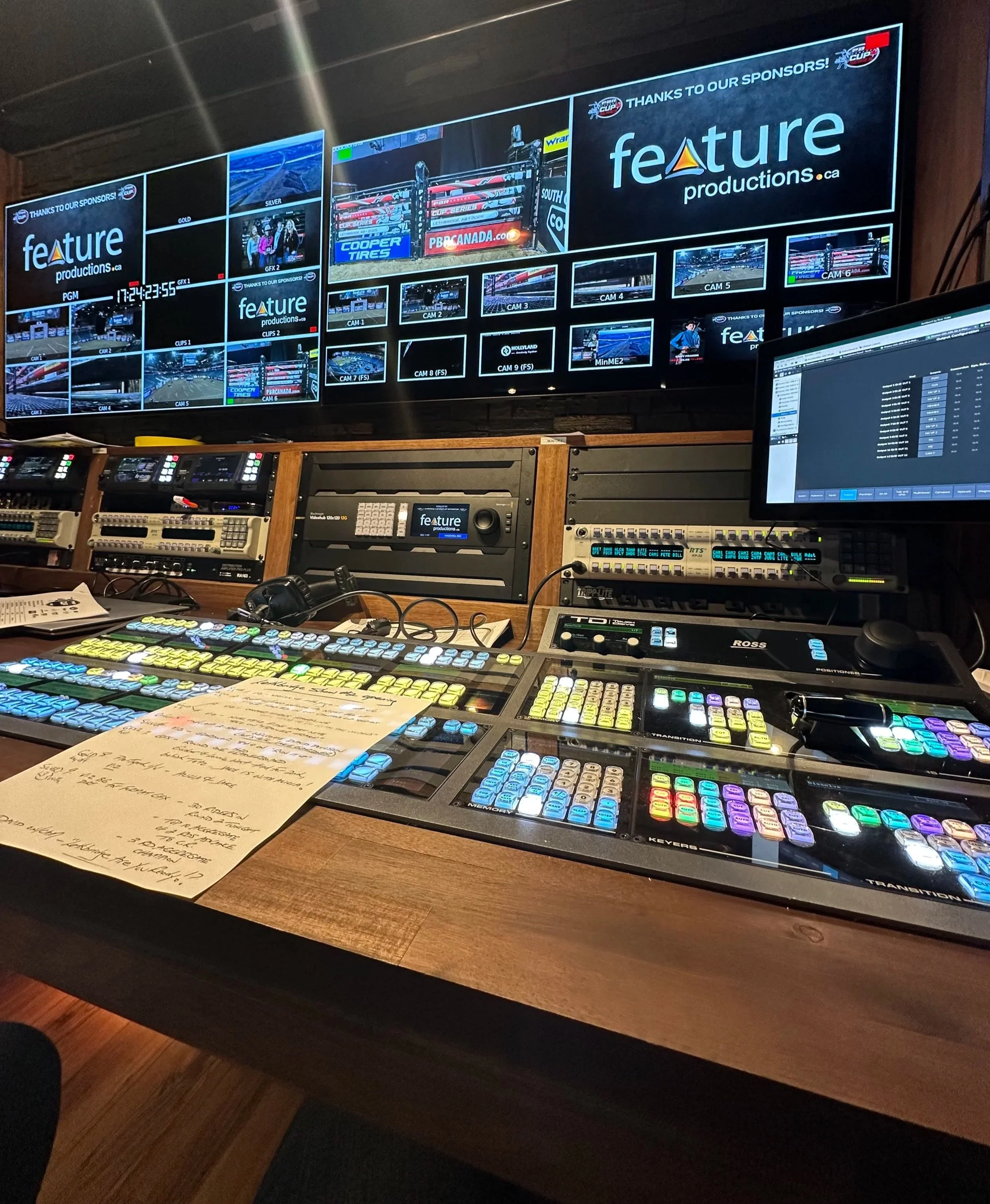

Switcher Panel
Ross TouchDrive 2 ME S Series with touchscreen display
Graphics System / Clips Player
Ross XPression with two fill option, DataLinq server option and clip server option
Replay
SimplyLive R8 Replay System with Controller
* 8 configurable video channels with audio embedding and quick export to media outlet of your choice
Recording
2x Atomos Shogan Studio 2 - up to 16 channels of ISO recording at 1080 i/p
2x Atomos Sumo 19" - up to 8 channels of ISO recording at 1080 i/p
Broadcasting
AJA Helo Encoder (H.264 to RTMP, RTSP, RTMPE, RTMPS, HTTPS and RTP/UDP Unicast and Multi Unicast)
Magewell Ultra Encode SDI Encoder (H.264/H.265 to SRT, NDI|HX, HLS & more)
Video Distribution / Conversion
20x 1x8 distribution amplifiers
192-channel patch bay
rear-facing video / audio bulkhead
2x AJA FiDO-4T-ST 4-channel 3G-SDI to ST fiber transmitters
2x AJA FiDO-4R-ST 4-channel 3G-SDI to ST fiber receivers
5x HDMI to HD-SDI converters
Audio
Allen and Heath SQ-5 48-channel / 36-bus digital mixer with AR2412 and SLink option card
Intercom
Zeus iii 32 port matrix with KP32 panels and BP325 beltpacks
Cameras
6x Sony HDC-1500 fiber camera packages with RCPs for camera control (various tripod / lens options)
option to add 3x Sony HDC-950 fiber camera packages
option to add 1x Canon DigiSuper 60xs box lens
Cabling
SMPTE fiber camera cable reels in various lengths
4-channel tactical fiber cable reels with ST connectors in various lengths
multi-core XLR / HD-SDI snakes in various lengths
multi-channel CAT6 cable reels in various lengths
cable trunk
Power
2x 125/250V 50A California connector
3x uninterrupted power supplies (UPS)
Dimensions
exterior length: 37' bumper to nose
interior length: 27' 8" + additional 9' of nose cargo space
Eclipse HD 36 Production Trailer Footprint
ROADAN HD 22 PRODUCTION TRUCK
Switcher
22-input Broadcast Pix Granite 2M/E switcher / server
Switcher Panel
Broadcast Pix 5000 with 2M/E control surface
Monitoring
4x HD multiview monitors + touchscreen monitor for replay
2x HD-SDI Monitors with built-in recorders and video scopes
Graphics System
RapidCG live graphics system
option to upgrade to Chyron Graffiti graphics system
Replay
SimplyLive R6 Replay System with Controller
* 6 configurable video channels with audio embedding and quick export to media outlet of your choice
Recording
Atomos Sumo 19” PGM recorder
Atomos Sumo 19" ISO recorders
Broadcasting
Magewell Ultra Encode SDI encoder (H.264/H.265 to SRT, NDI|HX, HLS & more)
Audio
Allen & Heath QuPacX digital audio console
RK5 audio monitors
Intercom
Zeus iii 16 port matrix with KP12 panels and BP325 beltpacks
option to add RTS single-channel wireless intercom
Cameras
Sony HDC-950 Fiber, 3-Camera Package includes:
3x Sony HDC-950 fiber camera heads
1x Sony MSU-750 master set-up unit
3x Sony HDCU-900 camera control units
3x Sony RCP-741
2x HA14x4.5BERM wide angle lenses
1x XA20sx8.5BERM lens with MS-01 zoom / focus controls
Vinten and Sachtler tripod systems
3x Sony HDVF-20A 2" ENG viewfinders with mics
1x Sony HDVF-C750W external viewfinder
3x 5-pin headsets
3x Pelican IM2975 custom camera cases
up to 5500' of SMPTE fiber camera cables
option to add box lens and/or upgrade to more camera systems
Video Distribution / Conversion
12x 1x8 distribution amplifiers
104-channel patch bay
rear-facing video / audio bulkhead
AJA FiDO 3G-SDI to ST fiber transmitters
AJA FiDO ST fiber to 3G-SDI receivers
Power
125/250V 50A California connector
2x uninterrupted power supplies (UPS)
Dimensions
exterior length: 22' bumper to nose
interior length: 17' 1/2"
Roadan HD 22 Production Trailer Footprint
VISION HD 22 FLYPACK
Switcher
22-input Broadcast Pix Granite switcher / server
Switcher Panel
Broadcast Pix 2000 with 1M/E control surface
Graphics System
RapidCG live graphics system
option to upgrade to Chyron Graffiti graphics system
Replay
NewTek 3Play Mini replay system with control surface
Recording
AJA KiPro HD video recorders
Atomos Sumo 19" ISO recorders
Encoding
Teradek VidiU Go
Teradek Cube 105
Audio
Allen & Heath QuPacX digital audio console
RK5 audio monitors
Intercom
RTS intercom system with BP325 dual-channel packs, Beyer Dynamic DT108 single muff headsets and DT109 double muff headsets
option to add RTS single-channel wireless intercom
Cameras
broadcast camera package of your choice (details in CAMERA SECTION)
Power
uninterrupted power supply (UPS)
CAMERA PACKAGES
Sony HDC-1500 Fiber, 6-Camera Package includes:
6x Sony HDC-1500 fiber camera heads
6x Sony HDCU-1500 camera control units
6x Sony RCP-750 joystick remotes
4x HA14x4.5BERM wide angle lenses
2x Fujinon XA20sx8.5BERM lenses with MS-01 zoom / focus controls
4x Sachtler Video 18 / 20 tripod systems
2x Sony HDVFC-730 7" viewfinders with hoods
4x Sony HDVF-200 2" viewfinders with mics
6x 5-pin headsets
6x Pelican IM2975 custom camera cases
up to 5500' of SMPTE fiber camera cables
Sony HDC-950 Fiber, 3-Camera Package includes:
3x Sony HDC-950 fiber camera heads
1x Sony MSU-750 master set-up unit
3x Sony HDCU-900 camera control units
3x Sony RCP-741
2x HA14x4.5BERM wide angle lenses
1x XA20sx8.5BERM lens with MS-01 zoom / focus controls
Vinten and Sachtler tripod systems
3x Sony HDVF-20A 2" ENG viewfinders with mics
1x Sony HDVF-C750W external viewfinder
3x 5-pin headsets
3x Pelican IM2975 custom camera cases
up to 5500' of SMPTE fiber camera cables
JVC ProHD 4-Camera Package includes:
1x JVC GY-HM850U ProHD camera / lens
3x GY-HM790U ProHD cameras / lenses
Vinten and Sachtler tripod systems
zoom and focus controls
camera power supplies
multi-core camera cables in various lengths
DigiSuper Box Lens Packages
Canon DigiSuper 60 XS lens w/ semi-servo controls and camera interface bracket
Canon DigiSuper 25 XS lens w/ semi-servo controls and camera interface bracket
Vinten HDT-2 tripods with Vinten Vector 70 heads
PTZ and POV Cameras
4x Marshall Electronics Pro Series POV HD-SDI broadcast cameras (CV502 and 503 - weatherproof)
1x Marshall Electronics CV-RCP-V2 touchscreen multi-camera controller
1x Marshall Electronics CV620 3G-SDI PTZ camera with 20x optical zoom
1x Marshall Electronics VS-PTC-IP IP PTZ camera controller
Wireless HD Video Transmission
Hollyland Cosmo C1 wireless HD video TX/RX
Teradek Bolt 2000 Pro wireless HD video TX/RX
Steadicam System
Zephyr HD camera stabilization system
9 lbs - 23 lbs net camera weight
sled with HD monitor
low-mode bracket for low-angle shooting
V-Mount battery mount with 12/24 volt batteries
GRAPHICS SYSTEMS
Chyron Graffiti with Lyric and DB Link
ChyronHego has a 50-year legacy of creating broadcast solutions. Today’s Lyric has the capabilities that designers and operators have loved for years, refined in a faster, clearer, more intuitive application. Optimized for most demanding live sports and entertainment production environments, Lyric is the world’s leading graphics creation and playout solution. Together with our custom leaderboard generation software and data ingestion, our Chyron system provides a live scoring solution that delivers fast, accurate leaderboards, lower thirds, live scores and more.
Rapid CG
Fluent Rapid CG provides an interface for linking TitleMotion GS with external data sources. It inserts text and images into Inscriber .SCRIBE template files and then updates and displays them on the Broadcast Pix Switcher. Text and images can be updated manually or automatically from XML or Microsoft Access database (.mdb) files. In addition clocks, timers, dates, RSS feeds and US Weather services may be added to any template file. This option is ideal for sports production, where data is constantly changing, (i.e. game clock and/or scoreboard) or for using as a simplified graphics station in a news or government production.
2x Motion Rocket Launchpad Sports Video Control Systems
Motion Rocket’s products are trusted to deliver critical advertising content to fans and to display real-time data in a live production setting. Feature Productions owns 2 Motion Rocket servers that deliver real-time data and advertising content to our live broadcasts and LED displays.
LED SCREENS
Our high-resolution LED screens and panels have a wide array of configurations for indoor and outdoor use. They look great in any lighting conditions and can withstand demanding weather.
